Bifold Door Hardware
Calculator

Bifold Door Hardware<br />
<span>Calculator</span>

Calculator top tips…

Please complete the form below in as much detail as possible for the most accurate calculation. Our online calculator uses the following parameters:

  • Up to 10 metre opening width
  • Up to 3 metre opening height
  • Up to 5 + 5 panels
  • Up to 60 kg panel weight
  • Up to 1 metre panel width

Please allow up to 4 working days for delivery.

For larger or heavier configurations, please contact our sales office on 01223 497097.

More Information

1. Frame Size

Min 900mm to Max 10000mm
mm
Max 3000mm
mm

2. Panels

Minimum panel configuration is 2 on one side and 0 or more on other.
Maximum number of panels per side is 5.

When viewed from the outside:

Number of panels folding to the left
Number of panels folding to the right
Inward or outward opening
INSIDE
OUTSIDE

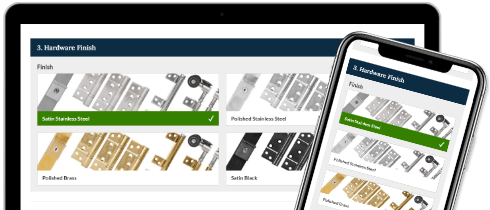

3. Hardware Finish

Satin Stainless Steel

Satin Stainless Steel

Polished Stainless Steel

Polished Stainless Steel

Polished Brass

Polished Brass

Satin Black

Satin Black

4. Optional Extras

View Image
The aluminium self-draining sill is only available for outward opening bifold doors.
The Aluminium Self-Draining Sill is not available if the width of your bifold doors is greater than 6000mm.
View Image
View Image
View Image
2Results

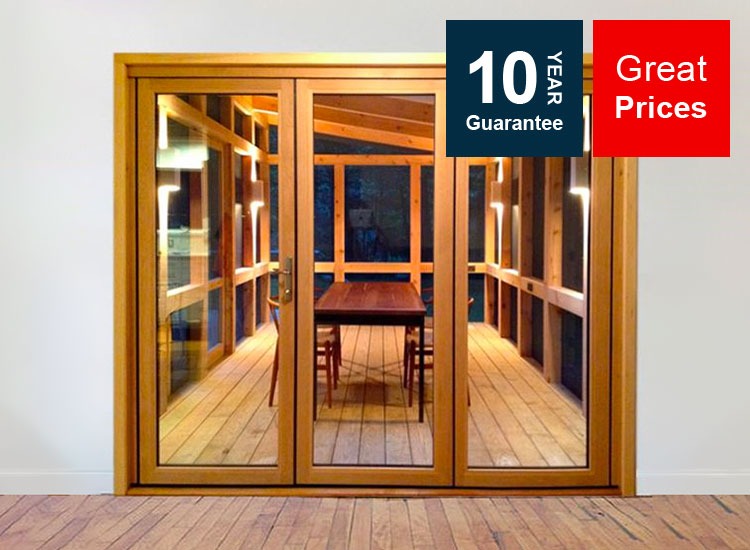

The Mighton Bi-Fold System combines style and function

The incredible build quality not only gives peace of mind, but looks great too. The doors have contemporary styled handles,  patented smooth operating hinges and sleek, simple to use flush bolts. The system is incredibly robust  and can be fitted to doors up to 1000mm wide and weighting up to 60kg per panel. Heavy load capacity, smooth operation and our 10 year warranty all add up to make a system that will meet your most exacting requirements.

Our unique system has many key features including:

  • Allow 3/4 working days for delivery
  • No Delivery charge for orders over £100
  • 10 year exclusive warranty
  • Available in Polished Chrome, Satin Chrome and Gold finishes
  • Simple height adjustment
  • Heavy duty precision hinges
  • Unique flush bolts that require just one router pass to install
  • Pre-assembled carrier and guide hinges for quick installation
  • Compact and unobtrusive 38mm square top track
  • Modern, aesthetic handle design
  • Patented hinge system that prevents ‘gouging’ of weather seals meaning no more service calls
  • Optional Drilling jig that ensures simple and correct hinge fitting

Technical Data

  • Max Panel Weight 60KG
  • Max Panel Height 3000mm
  • Max Panel Width 1000mm
  • Min Panel Thickness 38mm
  • Max number of panels 10 (5 each way)
  • Max opening width 10 metres
  • Hinges made from 316 SSS passed 240hr salt spray corrosion test
  • Hinges pass 200,000 cycle test
  • Optional Aluminium Self-draining Sill (Only for Outward opening door systems up to up to 6mtr wide)
  • Systems over 6mtr wide will require the top & bottom tracks to be butt jointed to achieve the length

Key Features

  • 10-year exclusive warranty
  • Simple height adjustment auto-locking collars
  • Heavy duty precision hinges
  • Unique flush bolts that require just one router pass to install them
  • Pre-assembled carrier and guide hinges for quick installation
  • Compact and unobtrusive top track only 38mm square
  • Modern and aesthetic handles
  • Patented hinge system prevents ‘gauging’ of weather seals- no more service calls
  • All doors are aligned when open
  • Drilling jig that ensures simple and correct hinge fitting is also available

Bi-Fold Brochure

Download the Mighton Bi-Fold brochure for more features of the system and full fitting instructions.

Download

Gallery

Using only the highest quality materials, our systems are built to last, easy to install and offer the best value for money. All of our Bi-Fold Hardware is made from 316 SSS and passed the 240hr salt spray corrosion test and the 200,000 cycle test.

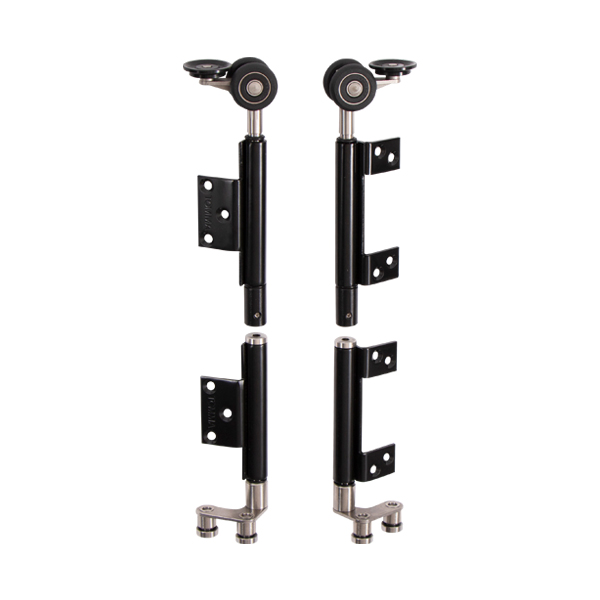

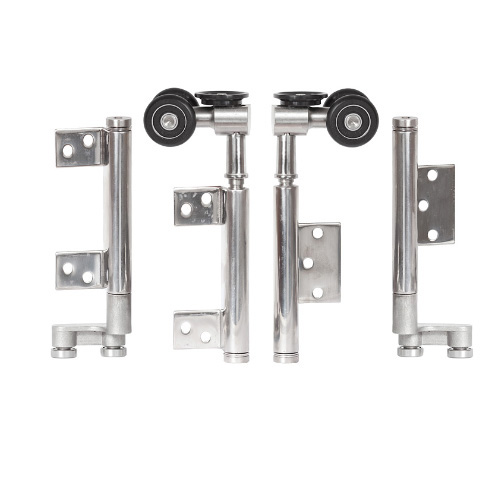

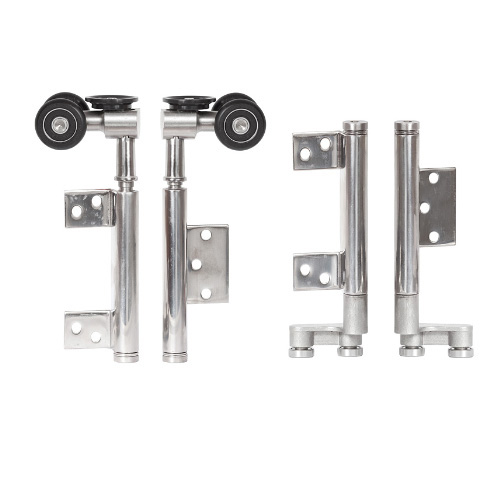

Carriers

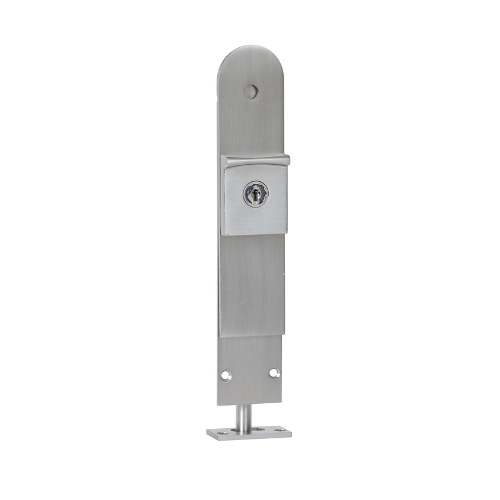

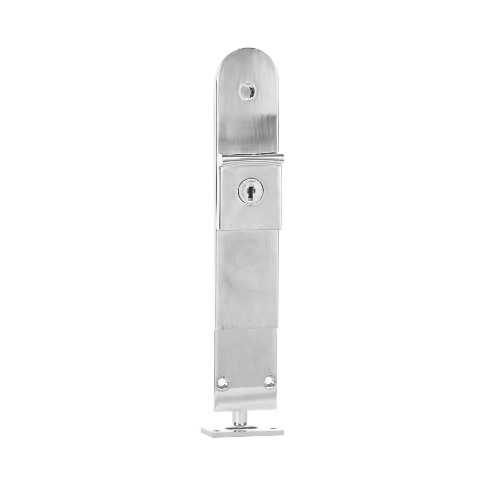

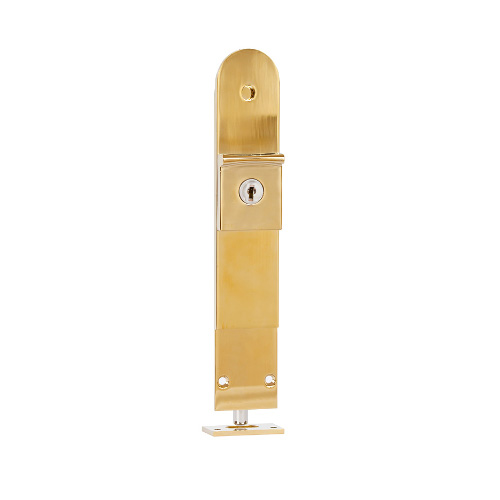

Flush Bolts

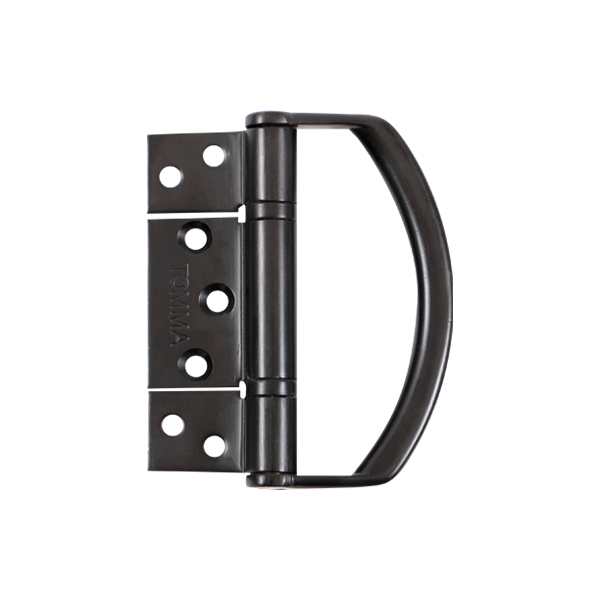

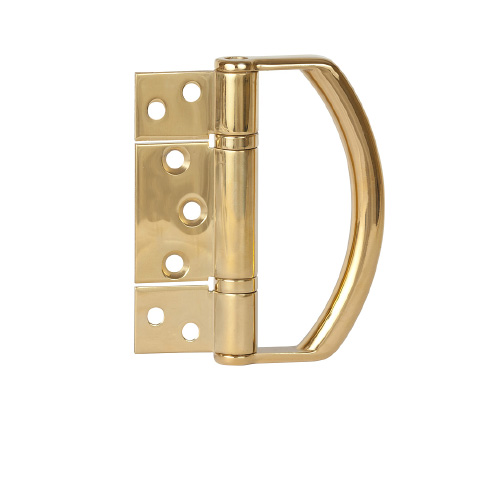

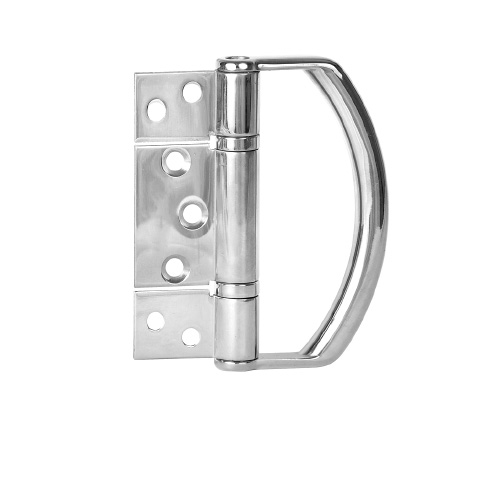

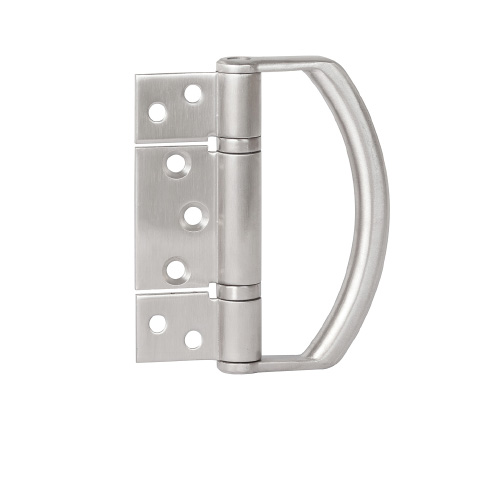

Handles

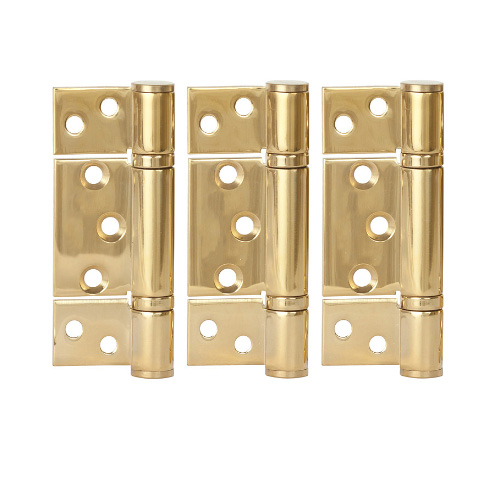

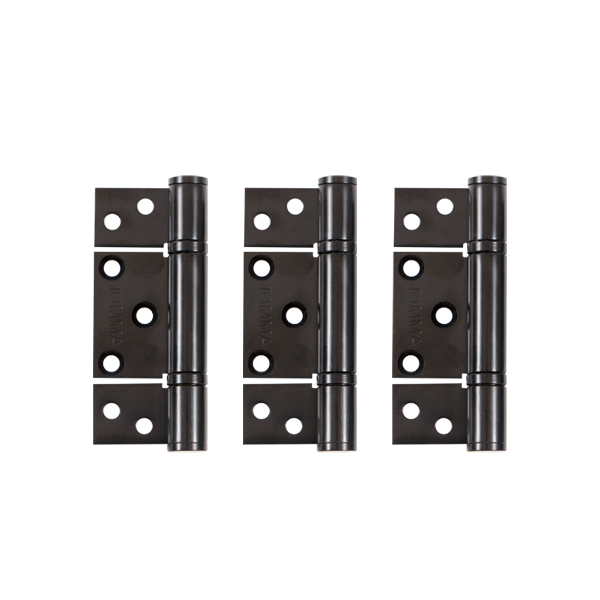

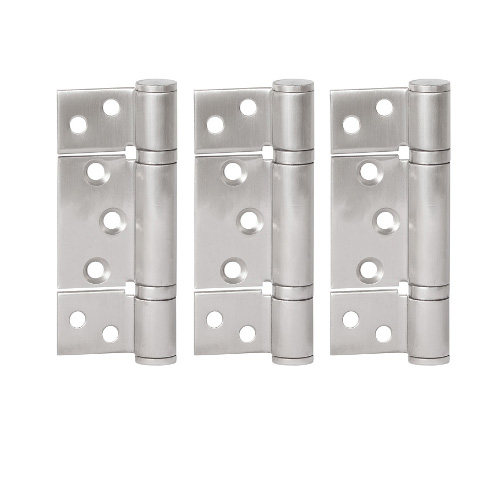

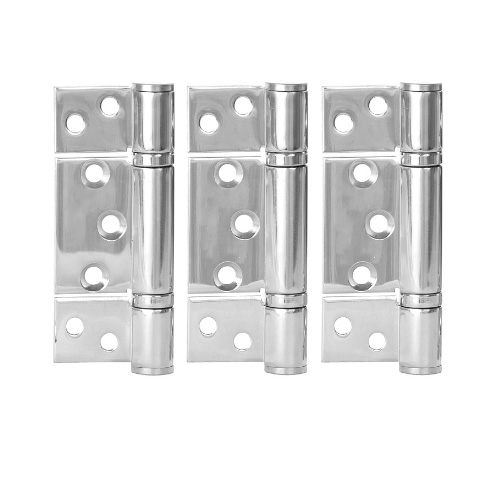

Hinges
