Egress Only Friction Stays

Egress Only Friction Stays

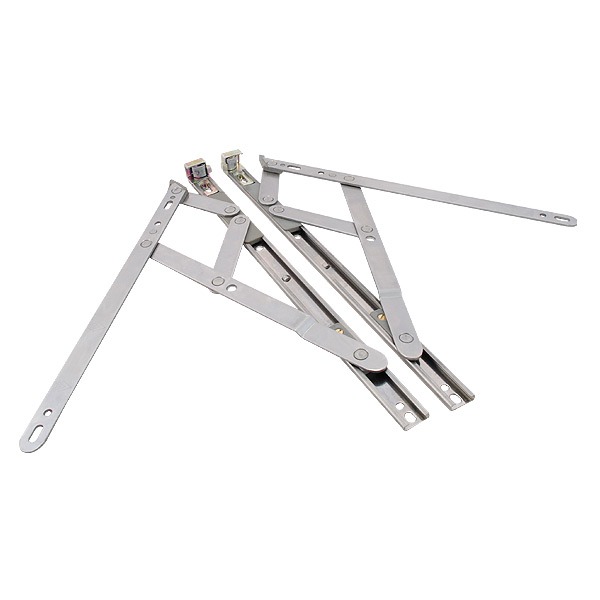

The Egress Only Hinge offers a great solution to the problem of emergency egress. It opens straight to the egress position and allows safe exit in the event of an emergency. It has no awkward buttons or catches and is ideal for side hung windows where easy cleaning functionality is not a requirement. This hinge cannot be used as a safety restrictor. We recommend fitting them to ground floor windows only.

  • 13mm and 17mm Stack heights
  • 2 lengths available (12″ version shown)
  • For side hung windows only – downloadable leaflet below
  • Safe and simple for fast escape
  • Can be fitted to all types of casement window including PVCu, Aluminium and Timber.
  • The hinge meets the corrosion requirements of BS EN 1670 Grade 4 (240 hours) and the performance requirements of BS 6375-1:2009
  • Has been cycle tested in excess of 25,000 cycles of opening and tested to BS EN 13126-1:2006.
  • Successfully tested as a critical component within PAS024 : 2016 (with Hingeguard sold separately)
  • Complies with Building Regulations Part B: 2013 for Fire Escape
  • Complies with BS 9991:2011 for Fire Escape
  • Safe and simple for fast escape
  • Sold in handed pairs

£4.49 – £6.29 ex. VAT

x

Description

The Egress Only Hinge offers a great solution to the problem of emergency egress. It opens straight to the egress position and allows safe exit in the event of an emergency. It has no awkward buttons or catches and is ideal for side hung windows where easy cleaning functionality is not a requirement. This hinge cannot be used as a safety restrictor. We recommend fitting them to ground floor windows only.

  • 13mm and 17mm Stack heights
  • 2 lengths available (12″ version shown)
  • For side hung windows only – downloadable leaflet below
  • Safe and simple for fast escape
  • Can be fitted to all types of casement window including PVCu, Aluminium and Timber.
  • The hinge meets the corrosion requirements of BS EN 1670 Grade 4 (240 hours) and the performance requirements of BS 6375-1:2009
  • Has been cycle tested in excess of 25,000 cycles of opening and tested to BS EN 13126-1:2006.
  • Successfully tested as a critical component within PAS024 : 2016 (with Hingeguard sold separately)
  • Complies with Building Regulations Part B: 2013 for Fire Escape
  • Complies with BS 9991:2011 for Fire Escape
  • Safe and simple for fast escape
  • Sold in handed pairs

Additional information

Weight N/A
Maximum Sash Weight

22kgs (48.5lbs), 24kgs (52.9lbs)
Stack Height

13mm Stack, 17mm Stack
Length

12" (304mm Long), 16" (406mm Long)

Bulk Pricing

VariationPrice Quantity
Product Code
EGRSH1213
Maximum Sash Weight
22kgs (48.5lbs)
Stack Height
13mm Stack
Length
12" (304mm Long)
1 - 9
£5.18
10 - 49
Save 5%£4.93
50+
Save 7%£4.84
Product Code
EGRSH1613
Maximum Sash Weight
24kgs (52.9lbs)
Stack Height
13mm Stack
Length
16" (406mm Long)
1 - 9
£6.29
10 - 49
Save 5%£5.99
50+
Save 7%£5.87
Product Code
EGRSH1217
Maximum Sash Weight
22kgs (48.5lbs)
Stack Height
17mm Stack
Length
12" (304mm Long)
1 - 9
£4.49
10 - 49
Save 2%£4.38
50+
Save 5%£4.27
Product Code
EGRSH1617
Maximum Sash Weight
24kgs (52.9lbs)
Stack Height
17mm Stack
Length
16" (406mm Long)
1 - 9
£5.88
10 - 49
Save 5%£5.59
50+
Save 7%£5.49
